Allegro Packets Network Multimeter

The Allegro Network Multimeter, developed by Allegro Packets (Germany), is an all-in-one network analysis and monitoring appliance. It captures traffic from 100 Mbps to 400 Gbps and analyzes it in real time across more than 50 L2 to L7 modules, so latency, packet loss, retransmissions, VoIP quality (SIP/RTP), and time synchronization (PTP) problems can be pinpointed in a few clicks. From a palm-sized portable to servers with 240 Gbps capture and 1,470 TB of storage, every model runs the same OS and web GUI.

Glean Co. is an authorized Allegro Packets sales partner in Japan, contracted directly with Allegro Packets, and provides Japanese-language product briefings, evaluation units, deployment design, and technical support.

Product line-up

Model	Max capture	Capture ports	NIC slots	In-memory DB	Max storage	Form factor / use
Allegro Virtual	1G	1 x 1GT (virtual)	0	---	---	Virtual machines, evaluation
Allegro 500	4G	4 x 1GT, Wi-Fi 6E	0	4–8 GB	4 TB	Portable. Branch offices, on-site debugging
Allegro 510	4G	2 x 1GT, 2 x 2.5GT, Wi-Fi 6E	0	16 GB	15 TB	Portable. Wired plus wireless field analysis
Allegro 810	6G	3 x 1GT, Wi-Fi 6E	1	16–128 GB	61.4 TB	1U. Mid-size sites
Allegro 1010	20G	2 x 1/10/25G SFP28, Wi-Fi 6E	1	16–512 GB	61.4 TB	1U. Continuous monitoring of 10G/25G links
Allegro 3010	40G	2 x 1/10/25G SFP28, Wi-Fi 6E	1	16–512 GB	61.4 TB	1U. Data center and core
Allegro x210	30G/60G/120G	4 x SFP+, Wi-Fi 6E	2	32–576 GB	253 TB	1U server
Allegro x310	40G/80G/160G/240G	2 x SFP+, Wi-Fi 6E	2 + 1 (OCP)	192 GB–6 TB	736 TB	1U server. Carriers, finance
Allegro x410	40G/80G/160G/240G	2 x SFP+, Wi-Fi 6E	6 + 1 (OCP)	192 GB–6 TB	736 TB	2U server. Many-port aggregation
Allegro x510	40G/80G/160G/200G	Wi-Fi 6E	4	192 GB–3 TB	1,000 TB	4U server. Long retention
JBOD 2U / 4U	---	---	---	---	216 TB / 792 TB	Storage expansion (x310 and up)

Expansion NICs cover 10M to 10G-T copper, 1G/10G/25G SFP+/SFP28, 40G/100G QSFP28, and 400G, including GPS-synchronized and 10 ns hardware-timestamp options. Contact us for current configurations and pricing.

Features

• Portable and server models that share one OS and web GUI, so field workflows on a 500/510 carry over to the servers.
• High analysis capability and high capture performance: up to 240 Gbps capture and 50+ L2–L7 analysis menus.
• Real-time and historical packet analysis: recent traffic from the in-memory database, older packets from storage.
• Conditional trigger-based capture and notification: capture is saved and an alert sent only when a threshold is crossed.
• Storage configurable up to 1,470 TB with JBOD expansion for long retention.
• Wi-Fi 6E analysis via a bundled USB adapter, wired and wireless in one view.

Protocols analyzed (excerpt)

• L2: Ethernet statistics, MAC, QoS, packet size, ARP, VLAN, STP, burst, MPLS, LLDP, PPPoE, LACP, VXLAN
• L3: IP, IP groups, IP pairs, QoS, geolocation, DHCP, DNS, NetBIOS, ICMP, multicast
• L4: connections, TCP (retransmissions, latency, window), L4 server ports, IPsec
• L7: L7 protocol detection, SSL/TLS, HTTP, response time, SMB, SIP, RTP, NTP, PTP, QUIC, RADIUS, FIX (financial trading), IEC 60870-5-104, IEC 61850, PROFINET, OPC-UA, TETRA, DICOM

Typical applications

• Financial institutions and trading systems: FIX protocol analysis and response-time visibility, execution-latency root cause with 10 ns timestamps, packet retention for audit and incident response

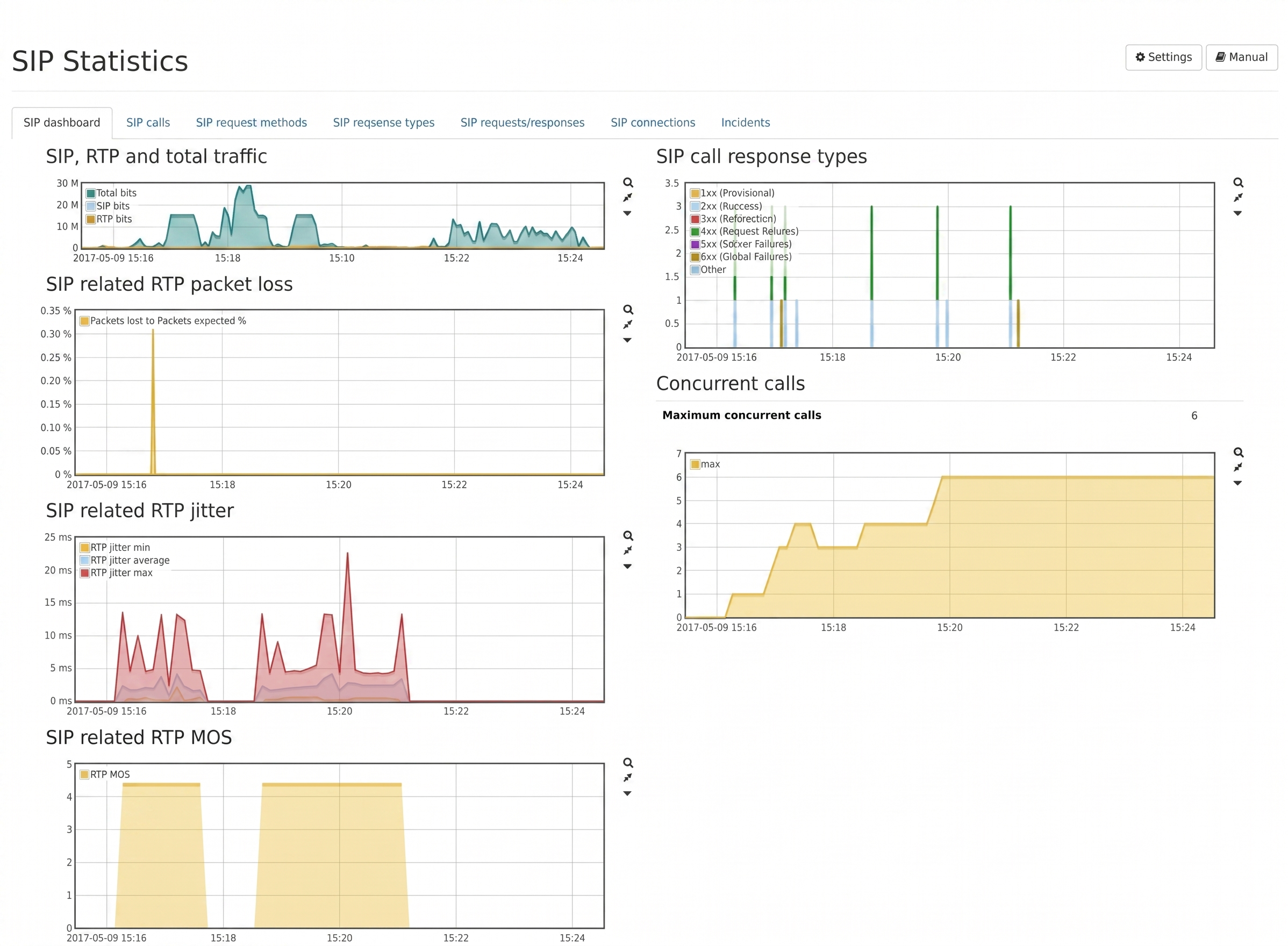

• Carriers and VoIP: real-time SIP/RTP call quality (MOS, jitter, loss) and isolation of voice faults
• Data centers and enterprises: pinpointing why the network is slow from application response time, TCP retransmissions, and bandwidth
• Manufacturing, utilities, healthcare: monitoring of PROFINET, OPC-UA, IEC 61850, and DICOM
• Integrators and maintenance vendors: on-site wired and wireless analysis with the portable Allegro 500/510

Packet analysis in a few clicks

The Allegro Network Multimeter combines ease of use with high speed and performance. Analysis module menus are organized by protocol, enabling real-time, per-IP analysis of connections, latency, loss, and retransmissions. Network problems can be detected in a few clicks.

One OS across the line, scaled to spec

Every product in the series runs the same OS, so packet handling and the web GUI are consistent across models. Server models let you select capture performance and add memory, storage, and capture interfaces, so you can choose the model that fits your network environment. Analysis modules and protocols are updated on an ongoing basis.

Deployment and support in Japan

Glean Co. provides Japanese-language technical briefings, evaluation loans, model selection for your network, and technical support after deployment for Allegro Packets products in Japan. Start with an evaluation unit on your own network.
